WALL SOCKET PK SCREW 32A IP67 380V 3PNT

ITM25243
INR2532.87Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

PKF32W735

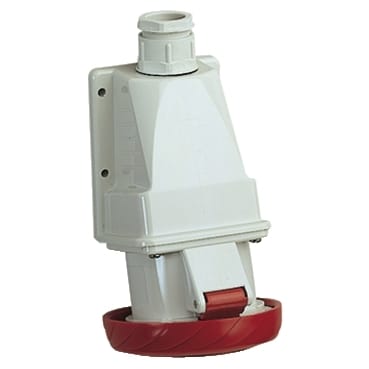

Images are for reference only.

  • Part Number:
    PKF32W735
  • Manufacturer:
  • Description:
    Industrial Socket
  • Detailed Description:

    WALL SOCKET PK SCREW 32A IP67 380V 3PNT

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

This Pratika industrial socket with captive screws connection is angled wall mounted. It has 3P+N+E poles, rated current is 32A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 106mm x (H) 130mm. The degree of protection is IP67 and IK08. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A is 2.5mm² to 10mm². The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Product Attributes

AttributeValue
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
7 Weeks
HSN Code
85366990

Standard Lead Time: 7 Weeks
