670ed48cffb37e002bed6f75MSTBA 2.5/4-G-5.08MSTBA 2.5/4-G-5.08

4 PinM,12A,320V,2.5 mm ,Pih:5.08 mm,CR-Cld,CLR:GN

ITM09491
INR25.19Out of Stock
Phoenix Contact
Select Store
  • B2C
  • B2B
Select Pincode

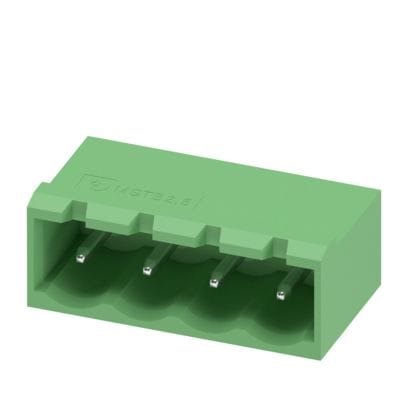

MSTBA 2.5/4-G-5.08

Images are for reference only.

  • Part Number:
    MSTBA 2.5/4-G-5.08
  • Manufacturer:
  • Article Number:
    1757268
  • Description:
    PCB Connector
  • Detailed Description:

    4 PinM,12A,320V,2.5 mm ,Pih:5.08 mm,CR-Cld,CLR:GN

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

PCB headers, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: MSTBA 2,5/..-G, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.23 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: without, mounting method: without, type of packaging: packed in cardboard

Product Attributes

AttributeValue
brandPhoenix Contact
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
250
Std Packing Qty
250
Lead Time
6 Weeks
HSN Code
85369090

Standard Lead Time: 6 Weeks
