670eb311f739ac00248cf3dcMSTB 2.5/ 3-STF-5.08MSTB 2.5/ 3-STF-5.08

3 Pin,12A,320V,2.5mm ,Pih:5.08 mm,ScrwCon,CLR:GN

ITM17793
INR218.95Out of Stock
Phoenix Contact
Select Store
  • B2C
  • B2B
Select Pincode

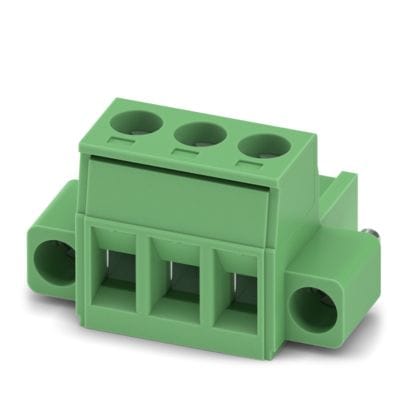

MSTB 2.5/ 3-STF-5.08

Images are for reference only.

  • Part Number:
    MSTB 2.5/ 3-STF-5.08
  • Manufacturer:
  • Article Number:
    1777992
  • Description:
    PCB Connector
  • Detailed Description:

    3 Pin,12A,320V,2.5mm ,Pih:5.08 mm,ScrwCon,CLR:GN

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Socket, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: MSTB 2,5/..-STF, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON MSTB 2,5, locking: Screw locking mechanism, mounting method: Screw flange, type of packaging: packed in cardboard

Product Attributes

AttributeValue
brandPhoenix Contact
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
100
Std Packing Qty
100
Lead Time
5 Weeks
HSN Code
85369090

Standard Lead Time: 5 Weeks
