670e7cebffb37e002beca550MKDSP 25/2-15.00MKDSP 25/2-15.00

2 Pin, 125A,1000V,35 mm ,Pih:15 mm,Screw,CLR:GN

ITM23542
INR496.44Out of Stock
Phoenix Contact
Select Store
  • B2C
  • B2B
Select Pincode

MKDSP 25/2-15.00

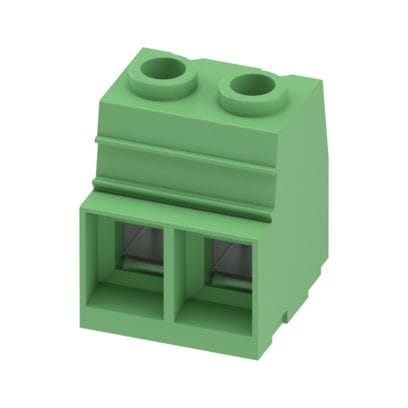

Images are for reference only.

  • Part Number:
    MKDSP 25/2-15.00
  • Manufacturer:
  • Article Number:
    1932588
  • Description:
    PCB Terminal Block
  • Detailed Description:

    2 Pin, 125A,1000V,35 mm ,Pih:15 mm,Screw,CLR:GN

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

Printed circuit board terminal, nominal current: 125 A, rated voltage (III/2): 1000 V, nominal cross section: 35 mm2, number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: MKDSP 25, pitch: 15 mm, connection method: Screw connection with tension sleeve, screw head form: Z2L Slotted Pozidriv, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 4.5 mm, number of solder pins per potential: 4, type of packaging: packed in cardboard. Avoid placing permanent mechanical loads on the terminal

Product Attributes

AttributeValue
brandPhoenix Contact
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
25
Std Packing Qty
25
Lead Time
5 Weeks
HSN Code
85369090

Standard Lead Time: 5 Weeks
