670e6f49ffb37e002bec7432MK3DSN 1.5/ 2-5.08MK3DSN 1.5/ 2-5.08

2 Pin,10A,400V,1.5mm ,Pih:5.08 mm,ScrewCon,CLR:GN

ITM25289
INR261.65Out of Stock
Phoenix Contact
Select Store
  • B2C
  • B2B
Select Pincode

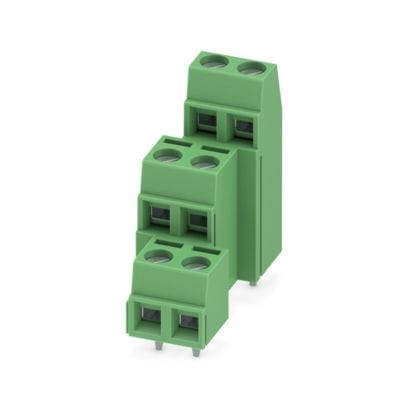

MK3DSN 1.5/ 2-5.08

Images are for reference only.

  • Part Number:
    MK3DSN 1.5/ 2-5.08
  • Manufacturer:
  • Article Number:
    1723289
  • Description:
    PCB Connector
  • Detailed Description:

    2 Pin,10A,400V,1.5mm ,Pih:5.08 mm,ScrewCon,CLR:GN

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

Printed circuit board terminal, nominal current: 10 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm2, number of potentials: 6, number of rows: 3, number of positions per row: 2, product range: MK3DSN 1,5, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!

Product Attributes

AttributeValue
brandPhoenix Contact
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
100
Std Packing Qty
100
Lead Time
5 Weeks
HSN Code
85369090

Standard Lead Time: 5 Weeks

FAQ

Frequently Asked Questions

The Get Quote feature allows you to select the product you need and request for a quotation.

To Request for a Quote RFQ, click the "Get Quote" button for the product you need. Fill out the requested details and submit.

Yes, we do offer special pricing. Click on Get Quote for the product you need or email us at [email protected]

Typicaly 12-72 hours. However, it can take longer with some products. You are assigned a key account manager, who will keep you updated about the status of your request.

Yes. All our our products are purchased directly from the Manufacturer (or a pre-defined authorised channel). By default all warranties extended by the Manufacturer would extend to you as purchaser. And yes, we can provide a COC on request.
For more informationContact Us
