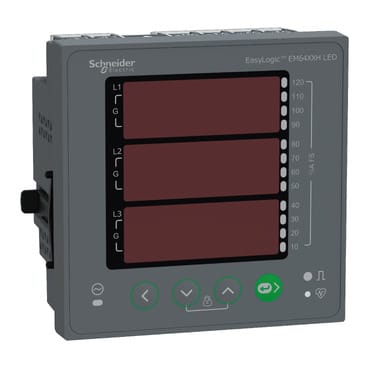

METSEEM6438HCL10RSSchneider Electric - Meter

EM6438H include two energy registers separately records consumption for dual source energy accounting. Utility vs Genset, Utility vs Solar, Utility vs Wind, or a combination of any two power sources. Form A relay to control the load in the event of abnormality in the electrical circuit including excess consumption of power. Providing Class 1 active energy accuracy per IEC 62053-21 standard, the meter will measure active and reactive energy. This meter can be used in billing and load management. Communication protocol is Modbus RTU with RS485 port support. The display has 3 rows 14 mm height, 7 segment 4 digit LED display, multi parameter measurement. Mechanical dimensions are 96 mm in width, 96 mm in height and 62.7 mm in depth ; for 300 g.
