DIRECT STANDARD ROTARY HANDLE

ITM08635
INR948In Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

LV429337

Images are for reference only.

  • Part Number:
    LV429337
  • Manufacturer:
  • Description:
    MCCB Acc
  • Detailed Description:

    DIRECT STANDARD ROTARY HANDLE

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

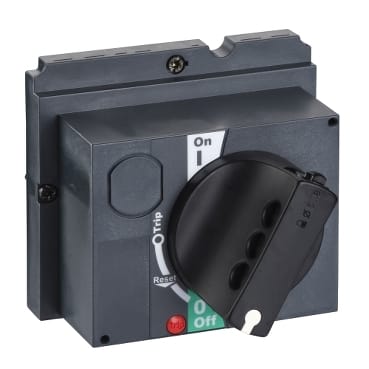

It is a direct rotary handle for Compact NSX 100/160/250, PowerPact Multistandard H/J frames and EasyPact CVS 100/160/250 devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. The degrees of protection are IP40 and IK07. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.

Product Attributes

AttributeValue
brandSchneider Electric

In StockIn Stock : 6

Ships from Bangalore, India.

For Bulk Purchases, click on "Get Quote" to request custom offer
Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
HSN Code
85389000

Enter Quantity

QuantityUnit Price (₹)
1₹948
Price excludes GST. Tax calculated at checkout.
6 item left in Stock

Your estimated delivery time will be shown here after you enter your PIN code, or it will appear automatically at the Checkout page.

Estimated delivery time is 6 Days
