670e60bcea3eae00320e1fcdLE1D09P7LE1D09P7

ENCLOS 1S 09A 230V 50/60

ITM27549
INR4122.75Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

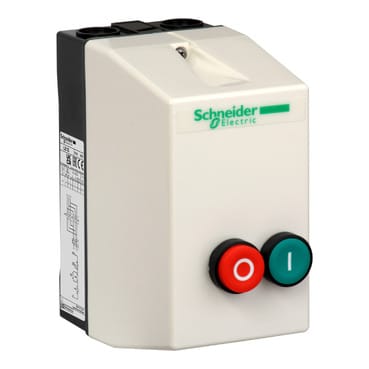

LE1D09P7

Images are for reference only.

Franchise : Authorised Distributor

Product Brief

TeSys enclosed starter with contactor, 3 poles, Ithe 9A 690V, for non-reversing motor applications up to 4kW@400V AC-3. Polycarbonate enclosure providing IP65 / IK07 protection, equipped with a green pushbutton Start (I) and a red pushbutton Stop/Reset (O). It includes a contactor LC1D with a control circuit 230V 50/60Hz. To operate, it must be fitted with a thermal overload relay LRD02-LRD14 depending on the motor power (to be ordered separately). Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).

Product Attributes

AttributeValue
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
6 Weeks
HSN Code
85371000

Standard Lead Time: 6 Weeks
