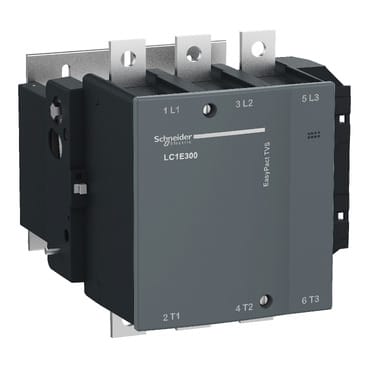

LC1E300M5
Images are for reference only.
- Part Number:LC1E300M5
- Manufacturer:
- Description:Contactor
- Detailed Description:
3P CONTACTOR EasyPact TVS 160KW 400V
Authorized
Franchise : Authorised Distributor
Product Brief
EasyPact TVS contactor 3 poles for motor applications up to 300A 185kW@440V. It provides a 220V 50Hz AC coil, without built-in auxiliary contacts, power and control connections by screw clamp terminals. 213mm width for standard operating rates up to 1200 cycles per hour. It procures standard reliability and durability with 0.5 Mcycles electrical durability AC-3 and 5 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).
Product Attributes
| Attribute | Value |
|---|---|
| Rated Operational Voltage(Ue) | <=690VAC 50/60hz |
| Range | Easy TeSys |
| Application | Motor Control and Resistive Load |
| Poles | 3P |
| Utilisation Category | AC-3,AC-1 |
| Control Circuit Voltage | 220VAC 50hz |
| Rated Operational Current(Ie) | 300 A (at <55 �C) at <= 440 V AC AC-3 for power circuit |
| brand | Schneider Electric |
This item is sold on RFQ only. Click on "Get Quote" to raise RFQ
Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
4 Weeks
HSN Code
85364900
Standard Lead Time: 4 Weeks
