LC1E0901N5
Images are for reference only.
- Part Number:LC1E0901N5
- Manufacturer:
- Description:Contactor
- Detailed Description:
3P CONTACTOR TESYS E 1NC 4KW 400V AC3 41
Authorized
Franchise : Authorised Distributor
Product Brief

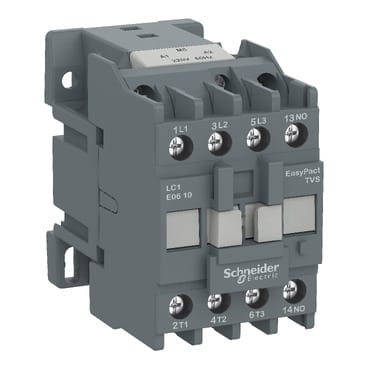

EasyPact TVS contactor 3 poles for motor applications up to 9A 4kW@440V. It provides a 415V 50Hz AC coil, 1NC built-in auxiliary contacts, power and control connections by screw clamp terminals. 45mm width for standard operating rates up to 1800 cycles per hour. It procures standard reliability and durability with 1.4 Mcycles electrical durability AC-3 and 10 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).
Product Attributes
| Attribute | Value |
|---|---|
| Rated Operational Voltage(Ue) | <=690VAC 50/60hz |
| Range | Easy TeSys |
| Application | Motor Control and Resistive Load |
| Poles | 3P |
| Utilisation Category | AC-3,AC-1 |
| Control Circuit Voltage | 415VAC 50hz |
| Rated Operational Current(Ie) | 9 A (at <55 �C) at <= 440 V AC AC-3 for power circuit |
| brand | Schneider Electric |
This item is sold on RFQ only. Click on "Get Quote" to raise RFQ
Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
8 Weeks
HSN Code
85365010
Standard Lead Time: 8 Weeks
