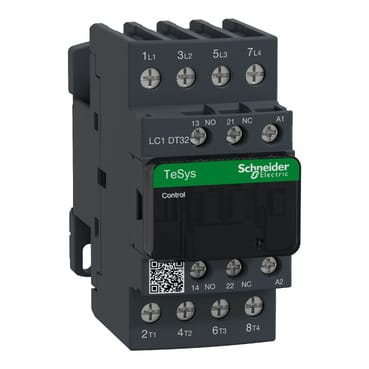

LC1DT32M7
Images are for reference only.
- Part Number:LC1DT32M7
- Manufacturer:
- Description:Contactor
- Detailed Description:
TeSys 4P CONTACTOR 32A AC-1 220VAC COIL
Authorized
Franchise : Authorised Distributor
Product Brief
TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 32A/440V AC-1. It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Product Attributes
| Attribute | Value |
|---|---|
| Rated Operational Voltage(Ue) | <=300VDC,<=690VAC 25..400hz |
| Range | TeSys |
| Application | Resistive Load |
| Poles | 4P |
| Utilisation Category | AC-3,AC-3e,AC-4,AC-1 |
| Control Circuit Voltage | 220VAC 50/60hz |
| Rated Operational Current(Ie) | 32 A (at <60 �C) at <= 440 V AC AC-1 for power circuit |
| brand | Schneider Electric |
This item is sold on RFQ only. Click on "Get Quote" to raise RFQ
Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
3 Weeks
HSN Code
85365010
Standard Lead Time: 3 Weeks
