670edfa07e39ce002b82c5d0FFKDS/H1-5.08FFKDS/H1-5.08

1 Pin,15A,400V,1.5 mm ,Pih:5.08 mm,Push Spring

ITM07580
INR31.91Out of Stock
Phoenix Contact
Select Store
  • B2C
  • B2B
Select Pincode

FFKDS/H1-5.08

Images are for reference only.

  • Part Number:
    FFKDS/H1-5.08
  • Manufacturer:
  • Article Number:
    1790335
  • Description:
    PCB Terminal Block
  • Detailed Description:

    1 Pin,15A,400V,1.5 mm ,Pih:5.08 mm,Push Spring

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

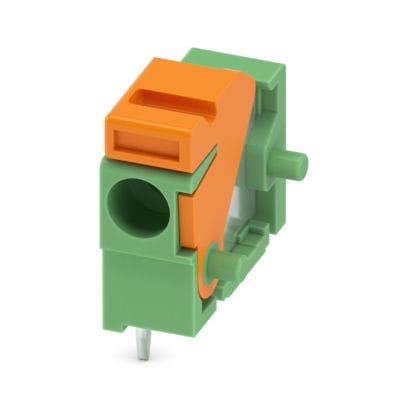

Printed circuit board terminal, nominal current: 15 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm2, number of potentials: 1, number of rows: 1, number of positions per row: 1, product range: FFKDS(A)/H1, pitch: 5.08 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.4 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard. Single module for the custom grouping of different numbers of positions. An end terminal block is also needed to terminate the block (see accessories). Blocked items with different numbers of positions are also available.

Product Attributes

AttributeValue
brandPhoenix Contact
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
250
Std Packing Qty
250
Lead Time
5 Weeks
HSN Code
85369090

Standard Lead Time: 5 Weeks
