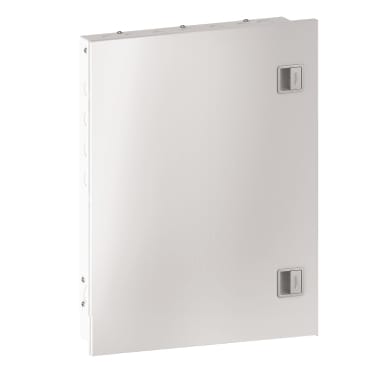

EZ9EVTD08

This Easy9 VTPN enclosure is a surface or flush mounted empty consumer unit, it is flexible and easy to install. The In rated current can be up to 100A. The number of ways is 8. The total number of 18mm modules are 3 for incomer and 48 for outgoer. The cables can enter via 4 knock-outs left side, 4 knock-outs right side, 7 knock-outs top and 7 knock-outs bottom. The provided equipements are removable gland plates, removable centre plates, blanking plate, DIN rail, earthing wire, neutral bar, comb busbar, phase voltage cable and earthing bar. This product is compatible with Easy9 switch, Easy9 MCB and Easy9 RCCB. It contains an molded case circuit breaker (MCCB) followed by miniature circuit breakers (MCB). The Ue rated operational voltage is 415V. The operating frequency is 50Hz. Its removable DIN rail brings in the adaptability to organize the cables in position before mounting the devices. The dimensions are (W) 483mm x (H) 625mm x (D) 111mm. The product weight is 13.5kg. The colour of the consumer unit is white (RAL9003). This metal enclosure comes with double door. The degree of protection is IP43. According to IEC 62262 standard, the degree of protection is IK08. This consumer unit is complies with IEC 61439 standard.
