Acti9 IMX-OF 100-415VAC 110-130VDC Shunt

ITM39892
INR2058.4Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

A9A26946Schneider Electric - Circuit Breaker Acc

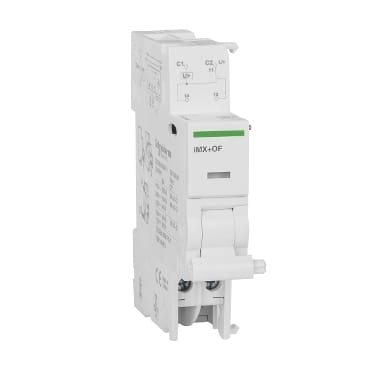

Images are for reference only.

  • Part Number:
    A9A26946
  • Manufacturer:
  • Description:
    Circuit Breaker Acc
  • Detailed Description:

    Acti9 IMX-OF 100-415VAC 110-130VDC Shunt

  • Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

This Acti9 iMX+OF electrical tripping auxiliary for is a shunt trip release device with open/close auxiliary contact. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. This device includes an open/close contact OF to indicated the position of the associated device. Emergency stoppage by normally open pushbutton. The product trips the associated device when it is powered on by emergency pushbutton. The width in 9mm pitches is 2. The Ue rated operational voltage is 100VAC to 415VAC or 110VDC to 130VDC. The operating frequency is 50Hz or 60Hz. The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC. There is a mechanical state indicator light, red on the front face. It can be mounted on a DIN rail for modular installation. The product color is white (RAL9003). The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.

Product Attributes

AttributeValue
brandSchneider Electric
RFQ

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
12 Weeks
HSN Code
85389000

Standard Lead Time: 12 Weeks
