670e745affb37e002bec88a2ZFKDS 10-10.00ZFKDS 10-10.00

1 Pin,76A,400V,10 mm ,Pih:10 mm,Spring,CLR:GN

ITM24719
INR89.91Out of Stock
Phoenix Contact
Select Store
  • B2C
  • B2B
Select Pincode

ZFKDS 10-10.00

Images are for reference only.

  • Part Number:
    ZFKDS 10-10.00
  • Manufacturer:
  • Article Number:
    1986628
  • Description:

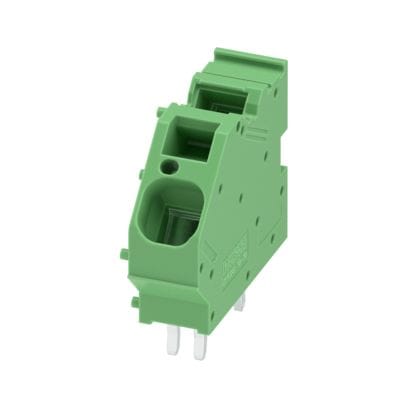

    PCB Terminal Block
  • Detailed Description:

    1 Pin,76A,400V,10 mm ,Pih:10 mm,Spring,CLR:GN

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

Printed circuit board terminal, nominal current: 76 A, rated voltage (III/2): 400 V, nominal cross section: 10 mm2, number of potentials: 1, number of rows: 1, number of positions per row: 1, product range: ZFKDS(A) 10, pitch: 10 mm, connection method: Spring-cage connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 6.5 mm, number of solder pins per potential: 4, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!

Product Attributes

AttributeValue
brandPhoenix Contact
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
50
Std Packing Qty
50
Lead Time
5 Weeks
HSN Code
85369090

Standard Lead Time: 5 Weeks
