ENCODER CABLE 5M SHIELDED, BCH2 FREE LEA

ITM29977
INR7791.75Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

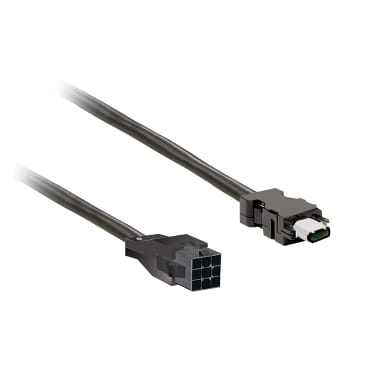

VW3M8D1AR50Schneider Electric - Servo Drive Acc

Images are for reference only.

  • Part Number:
    VW3M8D1AR50
  • Manufacturer:
  • Description:
    Servo Drive Acc
  • Detailed Description:

    ENCODER CABLE 5M SHIELDED, BCH2 FREE LEA

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

This product is part of the Lexium 28 range, an offer of motion servo drives and servo motors. This is a shielded encoder cordset for BCH2 motors with SinCos single turn encoder. It is equipped with one connector firewire 6-pin (servo drive side) and one connector Molex 9-pin (servo motor side). The encoder cable transmits signals between position sensors of servo motors and their control systems. The cable composition is 5x (2 x 0.13squaremm). It measures 5m long and weighs 1.2kg. It is a connection accessory to the BCH2 servo motors. It is compatible with servo motors type BCH2MBA53, /MB013, /LD023, /LD043, /LF043, /HF073, /LF073. It plugs into the encoder connector of LXM28 drives and BCH2 servo motors. Lexium 28 servo drives and Lexium BCH2 servo motors are Optimized servo bundles for compact machines. Designed for optimized & cost-effective.

Product Attributes

AttributeValue
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
4 Weeks
HSN Code
85444220

Standard Lead Time: 4 Weeks
