BSH MOTOR CABLE 1,5 3M

ITM11602
INR7251.3In Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

VW3M5101R30Schneider Electric - Servo Drive Acc

Images are for reference only.

  • Part Number:
    VW3M5101R30
  • Manufacturer:
  • Description:
    Servo Drive Acc
  • Detailed Description:

    BSH MOTOR CABLE 1,5 3M

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

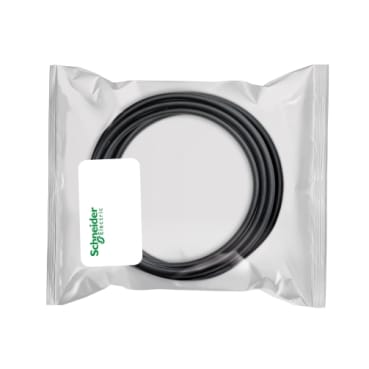

This product is part of the Lexium range, an offer of motion servo drives and servo motors. This power cable is an accessory of servo drives and motors. The length of this cable is 3m. It is furnished with M23 industrial connector for servo motor side and free end for servo drive side for electrical connection. The cable composition is 4 x 1.5mm² + 2 x 1mm². It is used between servo motor BDH, BSH and servo drive. It weighs 0.81kg. This product is compatible with Lexium 32, Lexium 05 and Lexium 15 servo drives and with servo motors BMH and BSH. With this new generation of motors and drives, you have the benefit of powerful solutions to design and optimize machines, the perfect answer to your technical and economic challenges. The high concentrate solutions for your machines.

Product Attributes

AttributeValue
brandSchneider Electric

In Stock In Stock : 13

RFQ

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
HSN Code
85444220
13 item left in Stock
