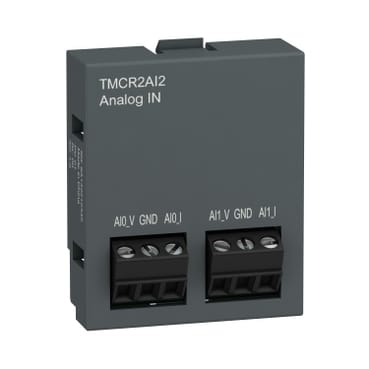

TMCR2AI2

This product is part of the Modicon Easy M200 range, an offer of logic controllers for up to 168 I/O, 2 axis motion control. This analogue input cartridge provides 2 inputs with 12bit input resolution. It is an analogue input cartridge with a signal current of 4mA to 20mA, 0mA to 20mA and a signal voltage of 0V to 10V. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is no insulation between analogue input and internal logic. It is furnished with screw terminal blocks for electrical connection with pitch 3.81mm adjustment for inputs. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.012kg. This product is compatible with Modicon Easy M200 logic controllers. Modicon Easy M200 controllers are entry-level products perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Modicon Easy M200 logic controllers, the best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.
