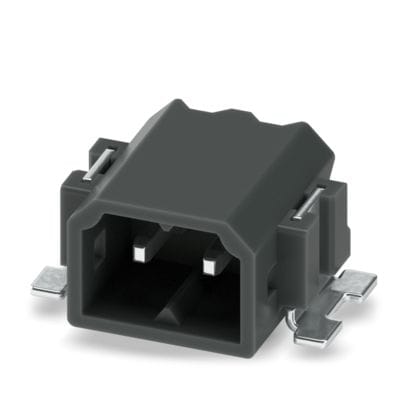

PTSM 0.5/ 2-HH-2.5-SMD R32

Images are for reference only.

Part Number:
PTSM 0.5/ 2-HH-2.5-SMD R32
Manufacturer:
Phoenix Contact
Article Number:
1778764
Description:
Feed Through Terminal Block
Detailed Description:
2 Pin,6A,160V,0.5 mm ,Pih:2.5 mm,CLR:Black
Datasheet
Authorized

Product Brief

PCB headers, nominal cross section: 0.5 mm2, color: black, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: PTSM 0,5/..-HH-SMD, pitch: 2.5 mm, mounting: SMD soldering, pin layout: Linear pad geometry, number of solder pins per potential: 1, plug-in system: COMBICON PTSM, Pin connector pattern alignment: Standard, locking: without, mounting method: without, type of packaging: 32 mm wide tape, Article with anti-rotation pin

Product Attributes

Attribute	Value
brand	Phoenix Contact

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In

PCS

Min Order Qty

600

Std Packing Qty

600

Lead Time

6 Weeks

HSN Code

85369090
