670e5fabc62c0600326d9d91PKF16W435PKF16W435

WALL SOCKET PK PRATIKA SCREW 16A IP44 38

ITM27355
INR833.67Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

PKF16W435

Images are for reference only.

  • Part Number:
    PKF16W435
  • Manufacturer:
  • Description:
    Industrial Socket
  • Detailed Description:

    WALL SOCKET PK PRATIKA SCREW 16A IP44 38

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

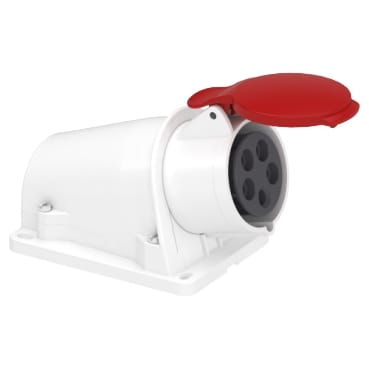

This Pratika industrial socket with captive screws connection is angled wall mounted. It has 3P+N+E poles, rated current is 16A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 90mm x (H) 120mm. The degree of protection is IP44 and IK08. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A is 1mm² to 4mm². The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Product Attributes

AttributeValue
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
6 Weeks
HSN Code
85366910

Standard Lead Time: 6 Weeks
