Wander socket PK PratiKa screws 16A IP44

ITM29040
INR520.38Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

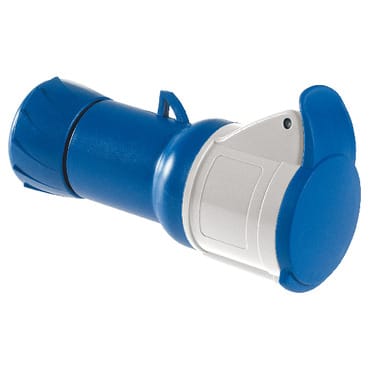

PKF16M423Schneider Electric - Industrial Socket

Images are for reference only.

  • Part Number:
    PKF16M423
  • Manufacturer:
  • Description:
    Industrial Socket
  • Detailed Description:

    Wander socket PK PratiKa screws 16A IP44

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

This Pratika industrial wander socket with captive screws connection is straight. It has 2P+E poles, rated current is 16A and the operating voltage is 200VAC to 250VAC. The dimensions of the base plate are (W) 78mm x (H) 78mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 8mm to 15mm for 1mm² to 4mm² cables. The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Product Attributes

AttributeValue
brandSchneider Electric
RFQ

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
7 Weeks
HSN Code
85366990

Standard Lead Time: 7 Weeks
