Panel socket angled PK PratiKa screw 16A

ITM10097
INR553.35In Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

PKF16F435Schneider Electric - Industrial Plug

Images are for reference only.

  • Part Number:
    PKF16F435
  • Manufacturer:
  • Description:
    Industrial Plug
  • Detailed Description:

    Panel socket angled PK PratiKa screw 16A

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

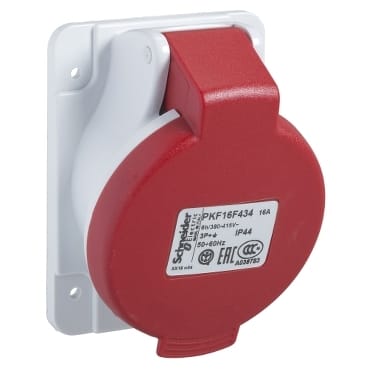

This Pratika industrial socket with captive screws connection is angled panel mounted. It has 3P+N+E poles, rated current is 16A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 90mm x (H) 100mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A is 1mm² to 4mm². The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Product Attributes

AttributeValue
brandSchneider Electric

In StockIn Stock : 4

Ships from Bangalore, India.

For Bulk Purchases, click on "Get Quote" to request custom offer
Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
HSN Code
85366990

Enter Quantity

QuantityUnit Price (₹)
1₹553.4
Price excludes GST. Tax calculated at checkout.
4 item left in Stock

Your estimated delivery time will be shown here after you enter your PIN code, or it will appear automatically at the Checkout page.

Estimated delivery time is 5 Days
