670eb1d5c62c0600326e81f4PKF16F423PKF16F423

Panel socket angled PK PratiKa screw 16A

ITM28870
INR398.84Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

PKF16F423

Images are for reference only.

  • Part Number:
    PKF16F423
  • Manufacturer:
  • Description:
    Industrial Socket
  • Detailed Description:

    Panel socket angled PK PratiKa screw 16A

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

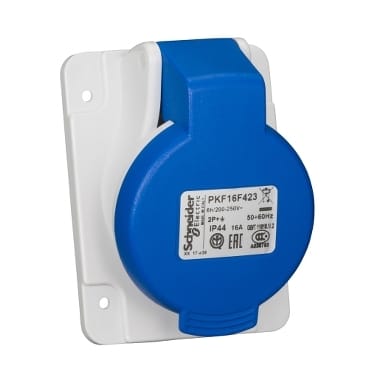

This Pratika industrial socket with captive screws connection is angled panel mounted. It has 2P+E poles, rated current is 16A and the operating voltage is 230VAC. The dimensions of the base plate are (W) 65mm x (H) 85mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A is 1mm² to 4mm². The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Product Attributes

AttributeValue
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
6 Weeks
HSN Code
85366990

Standard Lead Time: 6 Weeks
