670ec6eaea3eae00320f295fPKE32M423PKE32M423

Wander plug PK PratiKa screw 32A IP44

ITM12577
INR496Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

PKE32M423Schneider Electric - Industrial Plug

Images are for reference only.

  • Part Number:
    PKE32M423
  • Manufacturer:
  • Description:
    Industrial Plug
  • Detailed Description:

    Wander plug PK PratiKa screw 32A IP44

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

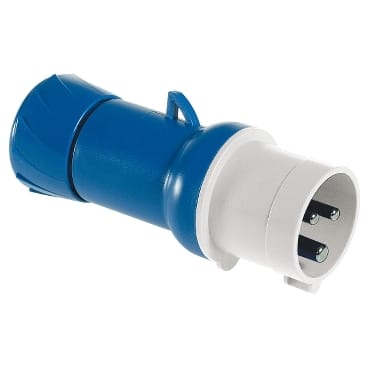

This Pratika industrial wander plug with captive screws connection is straight. It has 2P+E poles, rated current is 32A and the operating voltage is 230VAC. The dimensions of the base plate are (W) 76mm x (H) 152mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 32A is 11.5mm to 21mm for 2.5mm² to 10mm² cables. The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Product Attributes

AttributeValue
brandSchneider Electric
RFQ

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
5 Weeks
HSN Code
85366990

Standard Lead Time: 5 Weeks
