Wander plug PK PratiKa screw 16A IP67

ITM30657
INR2440.83Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

PKE16M713Schneider Electric - Industrial Plug

Images are for reference only.

  • Part Number:
    PKE16M713
  • Manufacturer:
  • Description:
    Industrial Plug
  • Detailed Description:

    Wander plug PK PratiKa screw 16A IP67

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

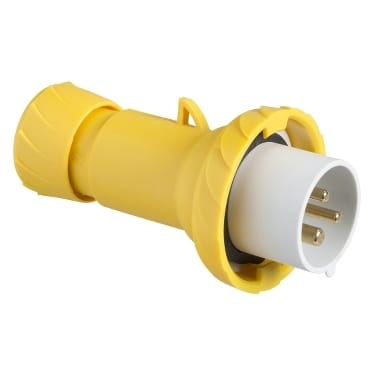

This Pratika industrial wander plug with captive screws connection is straight. It has 2P+E poles, rated current is 16A and the operating voltage is 110VAC. The dimensions of the base plate are (W) 73mm x (H) 129mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 8mm to 15mm for 1mm² to 4mm² cables. The color of the socket is light grey (RAL 7035) with yellow easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 4h.

Product Attributes

AttributeValue
brandSchneider Electric
RFQ

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
6 Weeks
HSN Code
85366910

Standard Lead Time: 6 Weeks
