670eb7272f8da800240aa91cPCV 6-16/ 4-GF-10.16PCV 6-16/ 4-GF-10.16

4PinM,76A,1KV,Pih:10.16mm,Vrtical,Thru-hole,CLR:GN

ITM28305
INR443.52Out of Stock
Phoenix Contact
Select Store
  • B2C
  • B2B
Select Pincode

PCV 6-16/ 4-GF-10.16

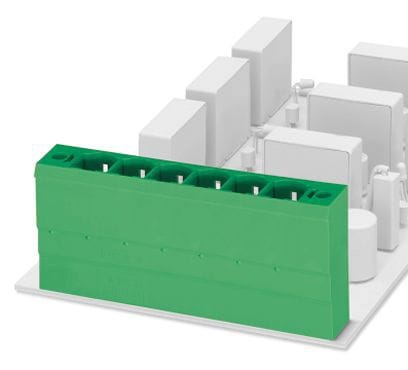

Images are for reference only.

  • Part Number:
    PCV 6-16/ 4-GF-10.16
  • Manufacturer:
  • Article Number:
    1922585
  • Description:
    Feed Through Header
  • Detailed Description:

    4PinM,76A,1KV,Pih:10.16mm,Vrtical,Thru-hole,CLR:GN

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

PCB headers, nominal cross section: 6 mm2, color: green, nominal current: 76 A (41 A in combination with PC 6 plug), rated voltage (III/2): 1000 V, contact surface: Ag, contact connection type: Pin, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: PCV 6-16/..-GF, pitch: 10.16 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 4 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 16, Pin connector pattern alignment: Standard, locking: Screw locking mechanism, mounting method: Threaded flange, type of packaging: packed in cardboard, The nominal current of 76 A applies in connection with connectors from the PC 16 family. 41 A are reached in connection with PC 6 connectors (50 A in accordance with UL).

Product Attributes

AttributeValue
brandPhoenix Contact
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
50
Std Packing Qty
50
Lead Time
6 Weeks
HSN Code
85369090

Standard Lead Time: 6 Weeks
