MCDN 1.5/ 8-G1-3.81 P26THR

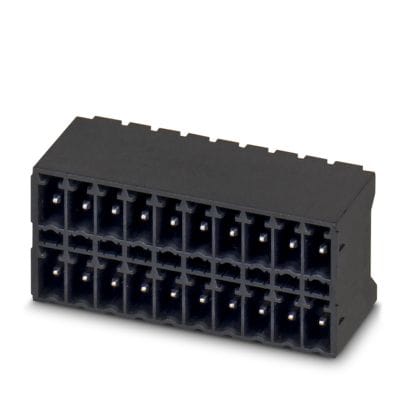

Images are for reference only.

Part Number:
MCDN 1.5/ 8-G1-3.81 P26THR
Manufacturer:
Phoenix Contact
Article Number:
1749586
Description:
PCB Connector
Detailed Description:
8 Pin,8A,160V,1.5 mm ,Pih:3.81 mm,CLR:Black
Datasheet
Authorized

Product Brief

PCB headers, nominal cross section: 1.5 mm2, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 16, number of rows: 2, number of positions: 8, number of connections: 16, product range: MCDN 1,5/..-G1-THR, pitch: 3.81 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON FMC 1,5 - MCDN 1,5, Pin connector pattern alignment: Standard, locking: without, mounting method: without, type of packaging: packed in cardboard, The pin length is 2.6 mm. User information and design recommendations on Through Hole Reflow Technology can be found at: "Downloads"

Product Attributes

Attribute	Value
brand	Phoenix Contact

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In

PCS

Min Order Qty

Std Packing Qty

Lead Time

5 Weeks

HSN Code

85369090
