670e7005ffb37e002bec7831MCDN 1.5/ 8-G1-3.5 P26THRMCDN 1.5/ 8-G1-3.5 P26THR

8Pin M,8A,160V,1.5mm ,Pih:3.5mm,Pin L:1.4mm,CLR:GN

ITM36102
INR673.28Out of Stock
Phoenix Contact
Select Store
  • B2C
  • B2B
Select Pincode

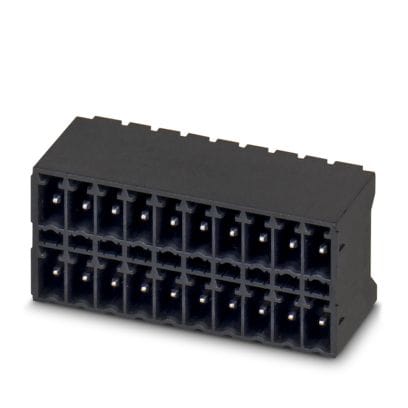

MCDN 1.5/ 8-G1-3.5 P26THR

Images are for reference only.

  • Part Number:
    MCDN 1.5/ 8-G1-3.5 P26THR
  • Manufacturer:
  • Article Number:
    1953774
  • Description:
    PCB Header
  • Detailed Description:

    8Pin M,8A,160V,1.5mm ,Pih:3.5mm,Pin L:1.4mm,CLR:GN

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

PCB headers, nominal cross section: 1.5 mm2, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 16, number of rows: 2, number of positions: 8, number of connections: 16, product range: MCDN 1,5/..-G1-THR, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON FMC 1,5 - MCDN 1,5, Pin connector pattern alignment: Standard, locking: without, mounting method: without, type of packaging: packed in cardboard, The pin length is 2.6 mm. User information and design recommendations on Through Hole Reflow Technology can be found at: "Downloads"

Product Attributes

AttributeValue
brandPhoenix Contact
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
40
Std Packing Qty
40
Lead Time
14 Weeks
HSN Code
85369090

Standard Lead Time: 14 Weeks
