670e6fff7e39ce002b81cd17MCDN 1.5/16-G1-3.5 P26THRMCDN 1.5/16-G1-3.5 P26THR

16PinM,8A,160V,1.5mm ,Pih:3.5mm,Pin L:1.4mm,CLR:GN

ITM36101
INR1109.78Out of Stock
Phoenix Contact
Select Store
  • B2C
  • B2B
Select Pincode

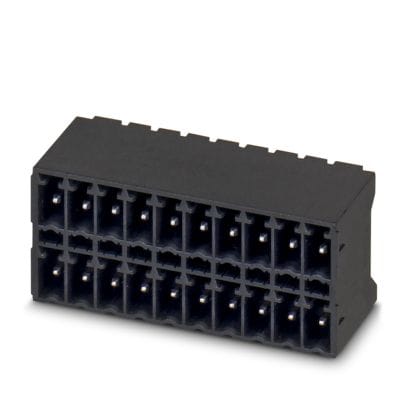

MCDN 1.5/16-G1-3.5 P26THR

Images are for reference only.

  • Part Number:
    MCDN 1.5/16-G1-3.5 P26THR
  • Manufacturer:
  • Article Number:
    1953855
  • Description:
    PCB Header
  • Detailed Description:

    16PinM,8A,160V,1.5mm ,Pih:3.5mm,Pin L:1.4mm,CLR:GN

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

PCB headers, nominal cross section: 1.5 mm2, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 32, number of rows: 2, number of positions: 16, number of connections: 32, product range: MCDN 1,5/..-G1-THR, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON FMC 1,5 - MCDN 1,5, Pin connector pattern alignment: Standard, locking: without, mounting method: without, type of packaging: packed in cardboard, The pin length is 2.6 mm. User information and design recommendations on Through Hole Reflow Technology can be found at: "Downloads"

Product Attributes

AttributeValue
brandPhoenix Contact
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
40
Std Packing Qty
40
Lead Time
14 Weeks
HSN Code
85369090

Standard Lead Time: 14 Weeks

FAQ

Frequently Asked Questions

The Get Quote feature allows you to select the product you need and request for a quotation.

To Request for a Quote RFQ, click the "Get Quote" button for the product you need. Fill out the requested details and submit.

Yes, we do offer special pricing. Click on Get Quote for the product you need or email us at [email protected]

Typicaly 12-72 hours. However, it can take longer with some products. You are assigned a key account manager, who will keep you updated about the status of your request.

Yes. All our our products are purchased directly from the Manufacturer (or a pre-defined authorised channel). By default all warranties extended by the Manufacturer would extend to you as purchaser. And yes, we can provide a COC on request.
