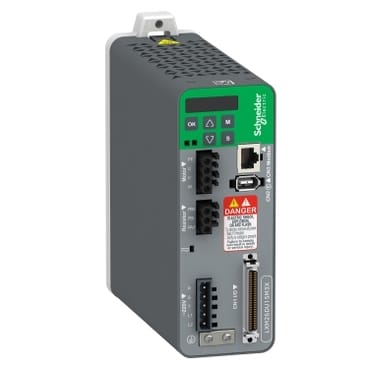

LXM26DU10M3XSchneider Electric - Servo Drive

This product is part of the Lexium Easy 26 range, an offer of motion servo drives for machines from 0.05kW to 4.5kW. The motion servo drive without EMC filter, features a HMI interface 7-segment display with 5 buttons. It is easy to mount and wire, thanks to identified plug-in connectors, easily accessed, all on the front panel of the drive. It is a motion servo drive with a rated supply voltage of 220V (single and three phase) for each phase, a frequency of 50/60Hz, a continuous output current of 7A at 16kHz, a power of 1kW/1.34HP and a continuous power of 1000W at 220V. It is furnished with spring terminal for electrical connection. There is an electrical isolation between power and control. It is provided with an integrated fan for cooling. It is an IP20 rated product. Its dimensions are 55mm (Width) x 177mm (Depth) x 150mm (Height). It weighs 1.2kg. It is suitable for material working, material handling, assembly line, packaging, printing, textile, machine tools, plastic and rubber, winding and unwinding applications. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with servo motor BCH2. Lexium Easy 26, servo drives and servo motors are entry-level products perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Combined with the BCH2 servo motors, the Lexium Easy 26 servo drives optimize your motion control the efficient and cost-effective way.
