6887467f33e31e30b8936fb9LV525452LV525452Easypact CVS - CVS250N circuit breaker - 3P/3dITM40670
INR17083Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

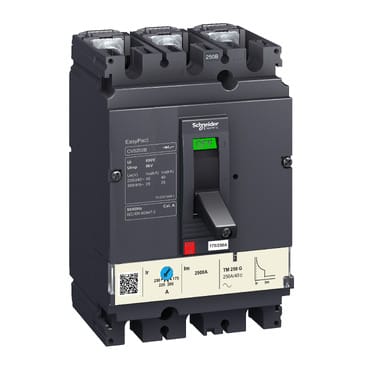

LV525452Schneider Electric - MCCB

Images are for reference only.

  • Part Number:
    LV525452
  • Manufacturer:
  • Description:
    MCCB
  • Detailed Description:
    Easypact CVS - CVS250N circuit breaker - 3P/3d
  • Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

This device is a rated current 200A circuit breaker from EasyPact CVS250N. The rated breaking capacity(Ics) is 50kA at 415VAC,and complete range with Ics=100%Icu. The version of breaker is 3poles frame with detection on 3poles, also accompanied TM-D trip unit for thermal-magnetic protection. It is conformed to standard IEC60947-2 for circuit breakers part. This device is certified for operation in pollution degree III environment as defined IEC60947-1& IEC60664-1, and respected for RoHs requirement as european environment directive EC/2002/95. It can be mounted by blackplate or Din rail,also through the door of class II switchboard without downgrading switchboard insulation. The front of toggle offers IP40 protection, but when it is equiped extended rotary handle inside the switchboard, additional IP54 protection degree for extended rotary handle. This series have slots for electrical auxiliaries(MN/MX/OF/SD),depending on the type of trip unit if rotary handle installed. The fixed dimension is 140mm width.255mm height,110mm depth,

Product Attributes

AttributeValue
brandSchneider Electric
RFQ

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
5 Weeks
HSN Code
85362020

Standard Lead Time: 5 Weeks
