LV432598T
Images are for reference only.
- Part Number:LV432598T
- Manufacturer:
- Description:Rotary Handle
- Detailed Description:Extended rotary handle, ComPacT NSX 400/630, Black
Authorized
Franchise : Authorised Distributor
Product Brief

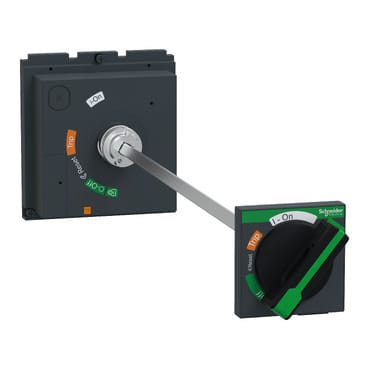

It is an extended rotary handle for ComPacT NSX 400/630, PowerPact Multistandard L frames and EasyPact CVS 400/630 devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. This extended version makes possible to operate devices installed at back of switchboards, from the switchboard front. The distance between the back of the circuit breaker and the switchboard door is from 185mm to 600mm. The degrees of protection are IP55 and IK08. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.
Product Attributes
| Attribute | Value |
|---|---|
| brand | Schneider Electric |
In Stock : 1
Ships from Bangalore, India.
For Bulk Purchases, click on "Get Quote" to request custom offer
Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
HSN Code
85389000
Enter Quantity
| Quantity | Unit Price (₹) |
|---|---|
| 1 | ₹2,430 |
Price excludes GST. Tax calculated at checkout.
1 item left in Stock
Your estimated delivery time will be shown here after you enter your PIN code, or it will appear automatically at the Checkout page.
Estimated delivery time is 6 Days
