688746598da15a5eb4b09389LRD1522LRD1522Thermal Overload TeSys Deca 17-25A Class 20ITM40313
INR10660.5Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

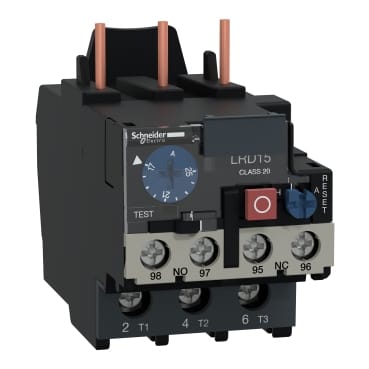

LRD1522

Images are for reference only.

  • Part Number:
    LRD1522
  • Manufacturer:
  • Description:
    Over Load Relay
  • Detailed Description:
    Thermal Overload TeSys Deca 17-25A Class 20
  • Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

TeSys LRD thermal overload relay, 25A/690V, thermal setting range 17-25A, tripping class 20, for protection of 3-phase motors 9-11kW@400V. Differential device with phase failure (loss). It provides a thermal adjustment dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signaling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B105 (to be ordered separately). Multi standards certified (IEC, UL, CSA, Marine).

Product Attributes

AttributeValue
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
5 Weeks
HSN Code
85364900

Standard Lead Time: 5 Weeks
