TeSys THERMAL OVERLOAD 1.0-1.7A CL10A

ITM08590
INR1238.6In Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

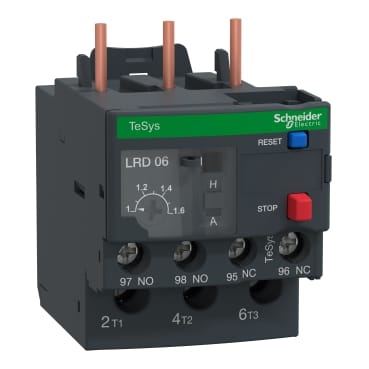

LRD06Schneider Electric - Over Load Relay

Images are for reference only.

  • Part Number:
    LRD06
  • Manufacturer:
  • Description:
    Over Load Relay
  • Detailed Description:

    TeSys THERMAL OVERLOAD 1.0-1.7A CL10A

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

TeSys LRD thermal overload relay, 1.6A/690V, thermal setting range 1-1.6A, tripping class 10A, for protection of 3-phase motors 0.55kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Product Attributes

AttributeValue
brandSchneider Electric

In StockIn Stock : 5

Ships from Bangalore, India.

For Bulk Purchases, click on "Get Quote" to request custom offer
Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
HSN Code
85364900

Enter Quantity

QuantityUnit Price (₹)
1₹1,238.6
Price excludes GST. Tax calculated at checkout.
5 item left in Stock

Your estimated delivery time will be shown here after you enter your PIN code, or it will appear automatically at the Checkout page.

Estimated delivery time is 7 Days
