TeSys THERMAL OVERLOAD 0.16-0.25A CL10A

ITM18861
INR1266.75Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

LRD02

Images are for reference only.

  • Part Number:
    LRD02
  • Manufacturer:
  • Description:
    Over Load Relay
  • Detailed Description:

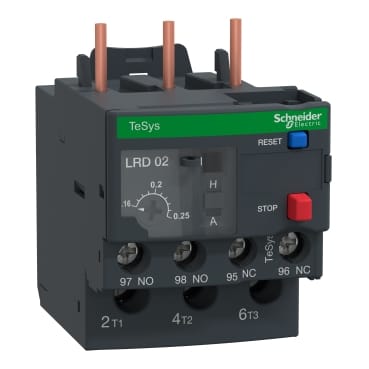

    TeSys THERMAL OVERLOAD 0.16-0.25A CL10A

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

TeSys LRD thermal overload relay, 0.25A/690V, thermal setting range 0.16-0.25A, tripping class 10A, for protection of 3-phase motors 0.06kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Product Attributes

AttributeValue
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
4 Weeks
HSN Code
85364900

Standard Lead Time: 4 Weeks
