TESYS K OVERLOAD RELAY CL10 1.2 - 1.8A

ITM30070
INR1287Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

LR2K0307

Images are for reference only.

  • Part Number:
    LR2K0307
  • Manufacturer:
  • Description:
    Over Load Relay
  • Detailed Description:

    TESYS K OVERLOAD RELAY CL10 1.2 - 1.8A

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

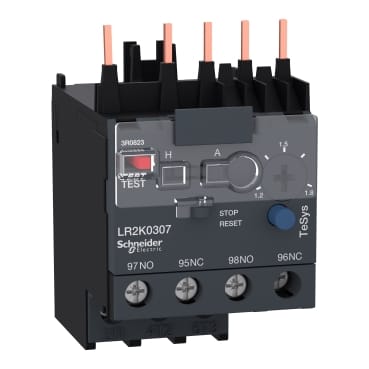

TeSys LRK thermal overload relay, 1.8A/690V, thermal setting range 1.2-1.8A, tripping class 10A, for protection of 3-phase motors 0.55kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test slide switch for simulation of a tripping, reset/stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1K06-K16. Mounting on DIN rail, separated from the contactor, with use of a terminal block LA7K0064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).

Product Attributes

AttributeValue
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
4 Weeks
HSN Code
85364900

Standard Lead Time: 4 Weeks
