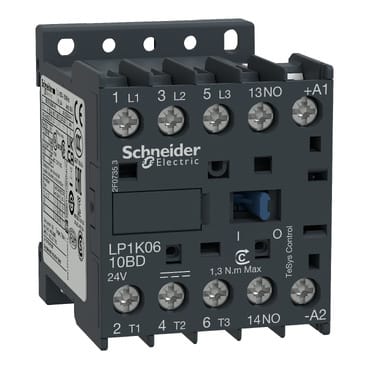

LP1K0610BD
Images are for reference only.
- Part Number:LP1K0610BD
- Manufacturer:
- Description:Contactor
- Detailed Description:
3P CONTACTOR 6A AC3 2.2KW 24VDC COIL
Authorized
Franchise : Authorised Distributor
Product Brief
TeSys K contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides a 24V DC coil, 1NO built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Product Attributes
| Attribute | Value |
|---|---|
| Rated Operational Voltage(Ue) | <=690VAC <=400hz |
| Range | Easy TeSys |
| Application | Motor Control |
| Poles | 3P |
| Utilisation Category | AC-3.AC-3e,AC-4 |
| Control Circuit Voltage | 24VDC |
| Rated Operational Current(Ie) | 6 A (at <60 �C) at <= 440 V AC AC-3 for power circuit |
| brand | Schneider Electric |
This item is sold on RFQ only. Click on "Get Quote" to raise RFQ
Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
3 Weeks
HSN Code
85364900
Standard Lead Time: 3 Weeks
