670e6b152f8da8002409bab9LC1E80N5LC1E80N5

3P CONTACTOR EasyPact TVS 37KW 400V AC3

ITM25828
INR9200.25Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

LC1E80N5Schneider Electric - Contactor

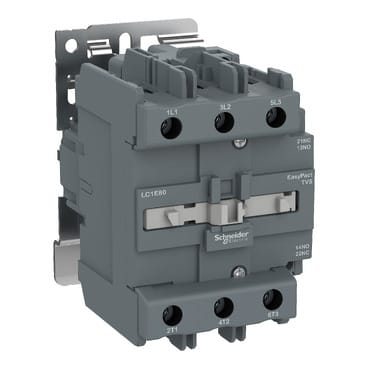

Images are for reference only.

  • Part Number:
    LC1E80N5
  • Manufacturer:
  • Description:
    Contactor
  • Detailed Description:

    3P CONTACTOR EasyPact TVS 37KW 400V AC3

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

EasyPact TVS contactor 3 poles for motor applications up to 80A 45kW@440V. It provides a 415V 50Hz AC coil, without built-in auxiliary contacts, power and control connections by screw clamp terminals. 85mm width for standard operating rates up to 1200 cycles per hour. It procures standard reliability and durability with 0.9 Mcycles electrical durability AC-3 and 3 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).

Product Attributes

AttributeValue
Rated Operational Voltage(Ue)<=690VAC 50/60hz
RangeEasy TeSys
ApplicationMotor Control and Resistive Load
Poles3P
Utilisation CategoryAC-3,AC-1
Control Circuit Voltage415VAC 50hz
Rated Operational Current(Ie)80 A (at <55 �C) at <= 440 V AC AC-3 for power circuit
brandSchneider Electric
RFQ

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
2 Weeks
HSN Code
85364900

Standard Lead Time: 2 Weeks
