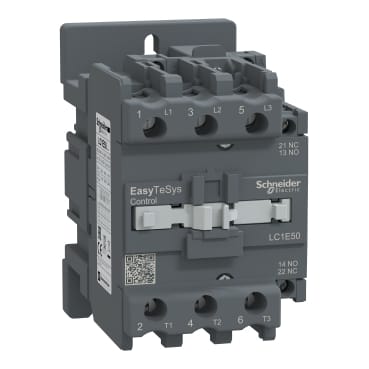

LC1E50M5

Images are for reference only.

Part Number:
LC1E50M5
Manufacturer:
Schneider Electric
Description:
Contactor
Detailed Description:
3P CONTACTOR EasyPact TVS 22KW 400V AC3
Datasheet
Authorized

Product Brief

EasyPact TVS contactor 3 poles for motor applications up to 50A 30kW@440V. It provides a 220V 50Hz AC coil, without built-in auxiliary contacts, power and control connections by screw clamp terminals. 75mm width for standard operating rates up to 1200 cycles per hour. It procures standard reliability and durability with 0.9 Mcycles electrical durability AC-3 and 5 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).

Product Attributes

Attribute	Value
Rated Operational Voltage(Ue)	<=690VAC 50/60hz
Range	Easy TeSys
Application	Motor Control and Resistive Load
Poles	3P
Utilisation Category	AC-3,AC-1
Control Circuit Voltage	220VAC 50hz
Rated Operational Current(Ie)	50 A (at <55 �C) at <= 440 V AC AC-3 for power circuit
brand	Schneider Electric

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In

PCS

Min Order Qty

Std Packing Qty

Lead Time

3 Weeks

HSN Code

85364900
