670edcd17e39ce002b82c3a4LC1E3201M5LC1E3201M5

3P CONTACTOR TESYS E 1NC 15KW 400V AC3 2

ITM08402
INR2557.8Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

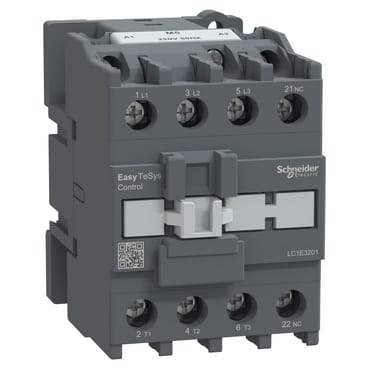

LC1E3201M5Schneider Electric - Contactor

Images are for reference only.

  • Part Number:
    LC1E3201M5
  • Manufacturer:
  • Description:
    Contactor
  • Detailed Description:

    3P CONTACTOR TESYS E 1NC 15KW 400V AC3 2

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

EasyPact TVS contactor 3 poles for motor applications up to 32A 15kW@440V. It provides a 220V 50Hz AC coil, 1NC built-in auxiliary contacts, power and control connections by screw clamp terminals. 56mm width for standard operating rates up to 1800 cycles per hour. It procures standard reliability and durability with 1 Mcycles electrical durability AC-3 and 8 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).

Product Attributes

AttributeValue
Rated Operational Voltage(Ue)<=690VAC 50/60hz
RangeEasy TeSys
ApplicationMotor Control and Resistive Load
Poles3P
Utilisation CategoryAC-3,AC-1
Control Circuit Voltage220VAC 50hz
Rated Operational Current(Ie)32 A (at <55 �C) at <= 440 V AC AC-3 for power circuit
brandSchneider Electric
RFQ

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
3 Weeks
HSN Code
85365010

Standard Lead Time: 3 Weeks
