670eaece2f8da800240a9aa8LC1E200M5LC1E200M5

3P CONTACTOR EasyPact TVS 110KW 400V

ITM18006
INR23872.5Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

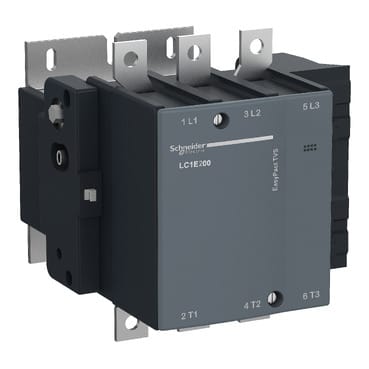

LC1E200M5Schneider Electric - Contactor

Images are for reference only.

  • Part Number:
    LC1E200M5
  • Manufacturer:
  • Description:
    Contactor
  • Detailed Description:

    3P CONTACTOR EasyPact TVS 110KW 400V

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

EasyPact TVS contactor 3 poles for motor applications up to 200A 100kW@440V. It provides a 220V 50Hz AC coil, without built-in auxiliary contacts, power and control connections by screw clamp terminals. 168.5mm width for standard operating rates up to 1200 cycles per hour. It procures standard reliability and durability with 0.5 Mcycles electrical durability AC-3 and 5 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).

Product Attributes

AttributeValue
Rated Operational Voltage(Ue)<=690VAC 50/60hz
RangeEasy TeSys
ApplicationMotor Control and Resistive Load
Poles3P
Utilisation CategoryAC-3,AC-1
Control Circuit Voltage220VAC 50hz
Rated Operational Current(Ie)200 A (at <55 �C) at <= 440 V AC AC-3 for power circuit
brandSchneider Electric
RFQ

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
3 Weeks
HSN Code
85364900

Standard Lead Time: 3 Weeks
