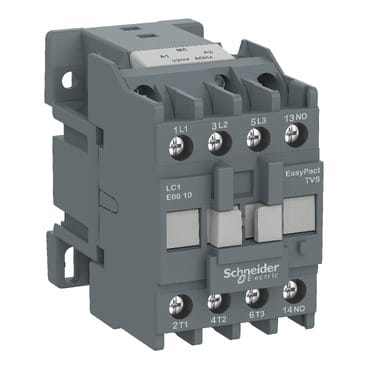

LC1E1210M7
Images are for reference only.
- Part Number:LC1E1210M7
- Manufacturer:
- Description:Contactor
- Detailed Description:
TVS 3P CTR 400V 5.5KW 220V 50/60Hz
Authorized
Franchise : Authorised Distributor
Product Brief
EasyPact TVS contactor 3 poles for motor applications up to 120A 59kW@440V. It provides a 220V 50/60Hz AC coil, 3NO built-in auxiliary contacts, power and control connections by screw clamp terminals. 120mm width for standard operating rates up to 1200 cycles per hour. It procures standard reliability and durability with 0.8 Mcycles electrical durability AC-3 and 4 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).
Product Attributes
| Attribute | Value |
|---|---|
| Rated Operational Voltage(Ue) | <=690VAC 50/60hz |
| Range | Easy TeSys |
| Application | Motor Control and Resistive Load |
| Poles | 3P |
| Utilisation Category | AC-3,AC-1 |
| Control Circuit Voltage | 220VAC 50/60hz |
| Rated Operational Current(Ie) | 25 A (at <55 �C) at <= 440 V AC AC-1 for power circuit |
| brand | Schneider Electric |
This item is sold on RFQ only. Click on "Get Quote" to raise RFQ
Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
2 Weeks
HSN Code
85366990
Standard Lead Time: 2 Weeks
