670ec6ad7e39ce002b82aa44LC1E1201B5LC1E1201B5

3P CONTACTOR TVS 1NC 5,5KW 400V AC3 24V

ITM12555
INR9999999Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

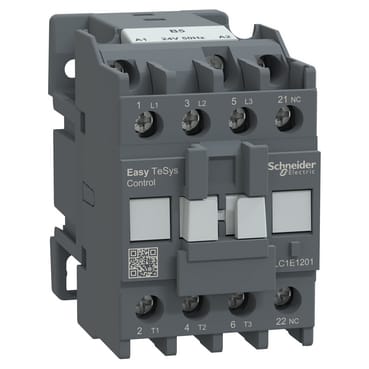

LC1E1201B5Schneider Electric - Contactor

Images are for reference only.

  • Part Number:
    LC1E1201B5
  • Manufacturer:
  • Description:
    Contactor
  • Detailed Description:

    3P CONTACTOR TVS 1NC 5,5KW 400V AC3 24V

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

EasyPact TVS contactor 3 poles for motor applications up to 12A 5.5kW@440V. It provides a 24V 50Hz AC coil, 1NC built-in auxiliary contacts, power and control connections by screw clamp terminals. 45mm width for standard operating rates up to 1800 cycles per hour. It procures standard reliability and durability with 1.4 Mcycles electrical durability AC-3 and 10 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).

Product Attributes

AttributeValue
Rated Operational Voltage(Ue)<=690VAC 50/60hz
RangeEasy TeSys
ApplicationMotor Control and Resistive Load
Poles3P
Utilisation CategoryAC-3,AC-1
Control Circuit Voltage24VAC 50hz
Rated Operational Current(Ie)25 A (at <55 �C) at <= 440 V AC AC-1 for power circuit
brandSchneider Electric
RFQ

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
2 Weeks
HSN Code
85365010

Standard Lead Time: 2 Weeks
