CONTACTOR CAPACITOR SWITCHING

ITM34734
INR16175.25Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

LC1DWK12M7Schneider Electric - Contactor

Images are for reference only.

  • Part Number:
    LC1DWK12M7
  • Manufacturer:
  • Description:
    Contactor
  • Detailed Description:

    CONTACTOR CAPACITOR SWITCHING

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

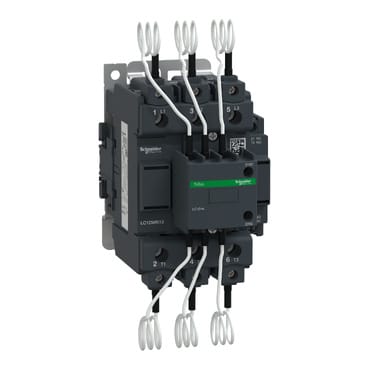

TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 63kVAR@400V 50Hz (104kVAR@690V). It provides a 220V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).

Product Attributes

AttributeValue
Rated Operational Voltage(Ue)<=690VAC 50/60hz
RangeTeSys
ApplicationPower Factor Correction
Poles3P
Utilisation CategoryAC-6b
Control Circuit Voltage220VAC 50/60hz
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
5 Weeks
HSN Code
85364900

Standard Lead Time: 5 Weeks
