LC1DT60AFD

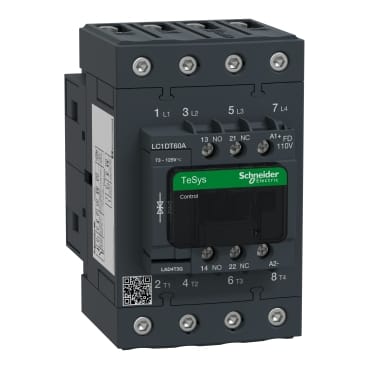

Images are for reference only.
- Part Number:LC1DT60AFD
- Manufacturer:
- Description:Contactor
- Detailed Description:
TeSys 4P EVLK CONTACTOR 60A AC1 110VDC
Authorized
Franchise : Authorised Distributor
Product Brief
TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 60A/690V AC-1. It provides a 110V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (70mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Product Attributes
| Attribute | Value |
|---|---|
| Rated Operational Voltage(Ue) | <=300VDC,<=690VAC 25..400hz |
| Range | TeSys |
| Application | Resistive Load |
| Poles | 4P |
| Utilisation Category | AC-1 |
| Control Circuit Voltage | 110VDC |
| Rated Operational Current(Ie) | 60 A (at <60 �C) at <= 440 V AC AC-1 for power circuit |
| brand | Schneider Electric |
In Stock : 4
Ships from Bangalore, India.
For Bulk Purchases, click on "Get Quote" to request custom offer
Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
HSN Code
85364900
Enter Quantity
| Quantity | Unit Price (₹) |
|---|---|
| 1 | ₹8,509.2 |
Price excludes GST. Tax calculated at checkout.
4 item left in Stock
Your estimated delivery time will be shown here after you enter your PIN code, or it will appear automatically at the Checkout page.
Estimated delivery time is 7 Days
