670e63b4c62c0600326dae35LC1DT32BDLC1DT32BD

TeSys 4P CONTACTOR 32A AC-1 24VDC COIL

ITM26996
INR2425.5Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

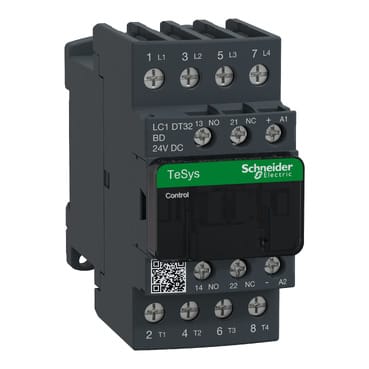

LC1DT32BD

Images are for reference only.

  • Part Number:
    LC1DT32BD
  • Manufacturer:
  • Description:
    Contactor
  • Detailed Description:

    TeSys 4P CONTACTOR 32A AC-1 24VDC COIL

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 32A/690V AC-1. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Product Attributes

AttributeValue
Rated Operational Voltage(Ue)<=300VDC,<=690VAC 25..400hz
RangeTeSys
ApplicationResistive Load
Poles4P
Utilisation CategoryAC-3,AC-3e,AC-4,AC-1
Control Circuit Voltage24VDC
Rated Operational Current(Ie)32 A 140 �F (60 �C)) <= 440 V AC AC-1 power circuit
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
6 Weeks
HSN Code
85365010

Standard Lead Time: 6 Weeks
