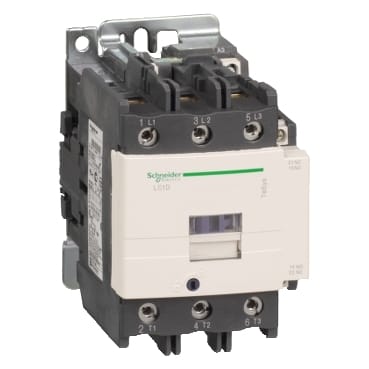

LC1D95M7
Images are for reference only.
- Part Number:LC1D95M7
- Manufacturer:
- Description:Contactor
- Detailed Description:
3P CONT 95AC3 45KW 1NO 1NC 220VAC COIL
Authorized
Franchise : Authorised Distributor
Product Brief
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 95A/1000V AC-3/AC-3e (45kW@400V). It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts, power connections by screw terminals and control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Product Attributes
| Attribute | Value |
|---|---|
| Rated Operational Voltage(Ue) | <= 690VAC 25...400hz |
| Range | TeSys |
| Application | Motor Control and Resistive Load |
| Poles | 3P |
| Utilisation Category | AC-3,AC-3e,AC-4,AC-1 |
| Control Circuit Voltage | 220VAC 50/60hz |
| Rated Operational Current(Ie) | 95 A (at <60 �C) at <= 440 V AC-3 for power circuit |
| brand | Schneider Electric |
This item is sold on RFQ only. Click on "Get Quote" to raise RFQ
Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
2 Weeks
HSN Code
85364900
Standard Lead Time: 2 Weeks
