Contactor TeSys Deca 80A 3P 110V AC 50Hz

ITM17458
INR12690Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

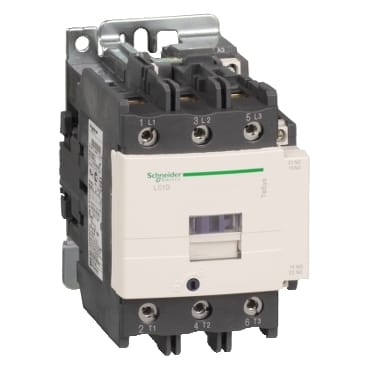

LC1D80F5Schneider Electric - Contactor

Images are for reference only.

  • Part Number:
    LC1D80F5
  • Manufacturer:
  • Description:
    Contactor
  • Detailed Description:

    Contactor TeSys Deca 80A 3P 110V AC 50Hz

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

TeSys Deca contactor, 3P(3NO) for category AC-3/AC-3e applications up to 80A @440V. It provides with 110V 50 Hz coil, with 1NO+1NC auxiliary contacts, power and control connections by screw clamp terminals. It procures high reliability and durability with 10 Mcycles mechanical durability and 1.5 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C. The dimension is 127mm x 85mm x 130mm (H x W x D), mounting on rail or plate. Multi standards certified(CCC,CSA,UL,GOST,BV,RINA,DNV,LROS,GL) and Green Premium compliant (RoHs/Reach).

Product Attributes

AttributeValue
Rated Operational Voltage(Ue)<=690VAC,<=300VDC 25...400hz
RangeTeSys
ApplicationMotor Control and Resistive Load
Poles3P
Utilisation CategoryAC-3,AC-3e,AC-4,AC-1
Control Circuit Voltage110VAC 50hz
Rated Operational Current(Ie)125 A (at <60 �C) at <= 440 V AC AC-1 for power circuit
brandSchneider Electric
RFQ

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
3 Weeks
HSN Code
85364900

Standard Lead Time: 3 Weeks
