LC1D80AEHE

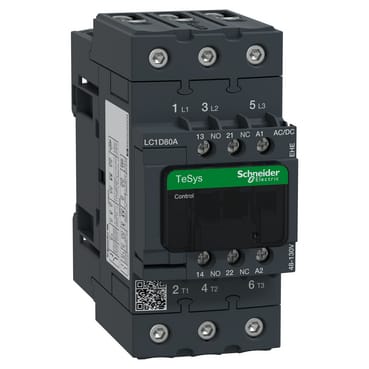

Images are for reference only.
- Part Number:LC1D80AEHE
- Manufacturer:
- Description:Contactor
- Detailed Description:
TeSys contactor-3P-AC3- <= 440V 80A -
Authorized
Franchise : Authorised Distributor
Product Brief
TeSys D contactor, 3 poles (3NO), for motor control applications up to 80A/690V AC-3 (37kW@400V). It provides a low consumption 100-250V AC/DC coil with electronic control, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by ring-lugs screw terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Product Attributes
| Attribute | Value |
|---|---|
| Rated Operational Voltage(Ue) | <= 690VAC 25...400hz |
| Range | TeSys |
| Application | Motor Control and Resistive Load |
| Poles | 3P |
| Utilisation Category | AC-1,AC-3,AC-3e |
| Control Circuit Voltage | 48...130VDC,48...130VAC 50/60hz |
| Rated Operational Current(Ie) | 80 A (at <60 �C) at <= 440 V AC-1 for power circuit |
| brand | Schneider Electric |
