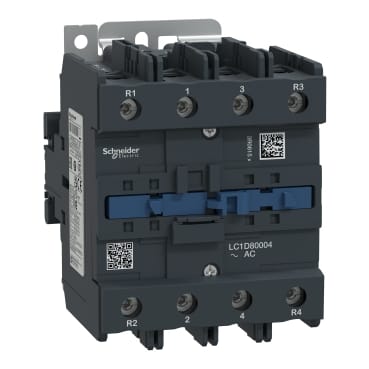

LC1D80004P7
Images are for reference only.
- Part Number:LC1D80004P7
- Manufacturer:
- Description:Contactor
- Detailed Description:
CONT 125A 4P 230V 50 60HZ
Authorized
Franchise : Authorised Distributor
Product Brief
TeSys Deca contactor, 4-pole (4NO), for non-inductive load applications up to 125A/1000V AC-1. It provides a 230V 50/60Hz AC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (96mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Product Attributes
| Attribute | Value |
|---|---|
| Rated Operational Voltage(Ue) | <=690VAC,<=300VDC 25...400hz |
| Range | TeSys |
| Application | Resistive Load |
| Poles | 4P |
| Utilisation Category | AC-3,AC-3e,AC-4,AC-1 |
| Control Circuit Voltage | 230VAC 50/60hz |
| Rated Operational Current(Ie) | 125 A (at <60 �C) at <= 440 V AC AC-1 for power circuit |
| brand | Schneider Electric |
This item is sold on RFQ only. Click on "Get Quote" to raise RFQ
Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
6 Weeks
HSN Code
85364900
Standard Lead Time: 6 Weeks
